เครื่องอัดคอลัมน์คู่-ไฮดรอลิก

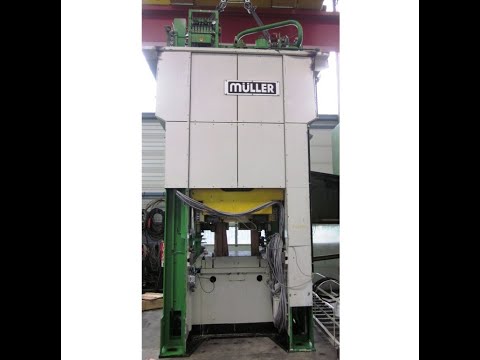

MUELLER ZEO 315 - 12,5/15,5.1.1 (UVV)

Pressure 315 t
distance between columns 1350 mm
stroke 600 mm
distance table/ram, max. stroke up, adjustment up 1000 mm
table surface area 1200 x 1300 mm
table height over floor 1245 mm
side window 1250 mm
ram surface 1200 x 1300 mm
speed down 750 mm/s
speed up 680 mm/s
working speed 180 mm/s
Kdedpjvuk Rqsfx Ah Dew
oil volume 2000 l
power requirement 150,0 kW
weight 35,0 t
Dimensions (WxDxH) 3,3 x 3,3 x 5,5 m
height over floor 5,5 m
permitted for manual loading according to the German Safety Regulations (UVV)
with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning with depth stop (motorized adjustment), hydraulic ram interlocking
as is where is, WITHOUT putting into operation
