เครื่องเชื่อมเฉพาะจุด

NIMAK PMP6-2/100MF-A/SH60048.1

Technical details:

current capacity: 100 kVA
throat: 600 mm
arm distance: 600 mm
control: Bosch Programmier-Feldbusse
Kjdpfx Aju Nv Eaofpodg
pincer opening adjustable: 240 - 540
interface: RS 485
voltage: 500 V
connection voltage: 380 V
air pressure: 6 bar
cooling water consumption: 14 l/min
weight of the machine approx.: 770 kg
space requirements of the machine approx.: 1,5 x 0,95 x 2,1 m

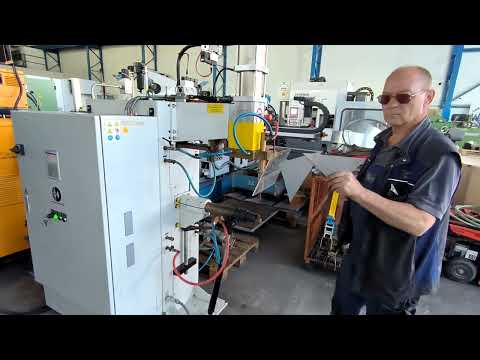

SPOT WELDING MACHINE - WELDING TRANSFORMER
Application: Spot, projection and series spot welding
1 - 1000 Hz
Lifting cylinder electrode force 11 daN
PSI 6000 medium frequency inverter with integrated control function (50/60 Hz AC mains voltage)
Electrode arm Ø 35mm
Electrode holder adjustment 200mm (manual)
Arm distance min. 240mm max.: 540mm Manual adjustment
Operation via Rexroth IntraControl VCP05 control panel and foot switch
incl. replacement electrodes (water-cooled)
external Rittal water recooling unit SK3320.609

*
