ศูนย์ชิ้นแนวตั้ง

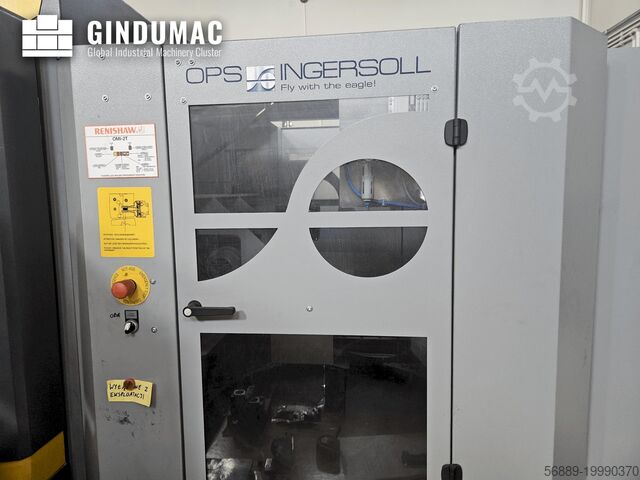

OPS INGERSOLL HIGH SPEED Eagle V5

General Data
Measurements width 2020 mm
Measurements depth 2800 mm
Measurements height 2450 mm
Machine weight 7200 kg

Control Unit
Brand HEIDENHAIN
Model iTNC 640 HSCI

Main Drive
Spindle speed range 1–42000
Tool taper Fisher HSK E40
Number of axis 5

Movement
X-Axis Movement 550 mm
X-Axis Rapid Traverse 30 m/min
Y-Axis Movement 400 mm
Y-Axis Rapid Traverse 30 m/min
Z-Axis Movement 400 mm
Z-Axis Rapid Traverse 30 m/min

Workpiece
Workpiece weight 500 kg

Table
Number of tslots 5
Table load 250 kg

Tools
Max tool diameter 16 mm

Additional Equipment
Lodpjxcb Ncjfx Aaferu
4/5-axis Tilting Rotary Table prepared for Pallet System
B-axis Tilting Range: −120° to +60°
C-axis Rotation: 360°
B-axis Speed: 25 rpm
C-axis Speed: 20 rpm
Keller Dust Extraction System
EROWA UPC Production Chuck Clamping System
Tool Length and Diameter Laser Measurement, Broken Tool Detection
Touch Probe (Renishaw)
Precision Pack III – 5-axis Thermal Compensation

This 5-axis OPS INGERSOLL Eagle V5 was manufactured in 2017, featuring a robust vertical machining center design. It boasts a high-speed Fisher HSK E40 spindle with speeds up to 42,000 rpm and a 32-tool magazine. The machine includes a 4/5-axis tilting rotary table, enhancing its versatility for complex machining tasks. Consider the opportunity to buy this OPS INGERSOLL Eagle V5 vertical machining center. Contact us for more information about this machine.

Application Types
Milling
