SCHORR Minidumper RR500DHKAH PRO [Hochkipper]

SCHORR track dumper RR500DHKAH PRO - Discover the advantages:

- 9.2 hp four-stroke engine
- Self-propelled & powerful track drive
- Hydraulic scissor lift (discharge height 1.44m)
- 500kg payload
- Large & high-quality tipper body with large tipping angle
- Folding passenger platform as standard
- 6+2 gears

Nsdpfx Amsttg Upe Uolh
SCHORR TRACK DUMPER DHKAH PRO WITH TIPPING HYDRAULICS, RIDER PLATFORM AND SCISSOR LIFT

The SCHORR RR500DHKAH track dumper has a hydraulic tipping drive and a payload of 500 kg as well as a powerful 9.2 hp single-cylinder 4-stroke petrol engine. The special feature of the RR500DHKAH is the hydraulically controllable scissor lift function. This allows you to eject the transported material up to a height of 1.44 m - ideal for trailers, containers or other higher areas.

Thanks to its slim design (700 mm), the minidumper can also drive through narrow paths and doors, making it an extremely flexible means of transportation.

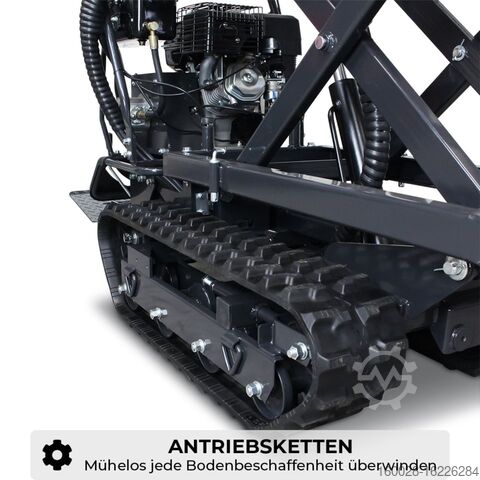

Thanks to the minidumper's powerful track drive, you can also overcome rough terrain, inclines and kerbs with ease. The rubber tracks provide a secure footing in any working area.

Lifting and lowering the tipper body / box is effortless and effortless thanks to the hydraulic tipper drive, even when fully loaded.

With a robust body made of thick sheet metal and a straight outlet that ensures quick and easy discharge, this dumper is a must for anyone who needs to transport heavy loads. Even tipping on slight inclines is no problem.

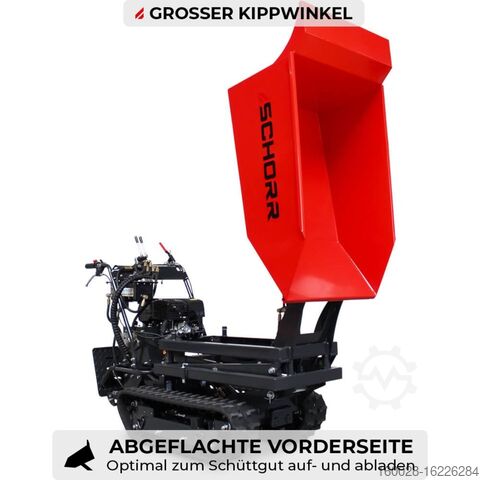

The large tipping angle ensures that even fully loaded skips are emptied completely without you having to help manually. This saves time and effort and makes the motorized wheelbarrow an indispensable tool for anyone who values efficiency and performance.

TECHNICAL DATA:

Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR500
Model: DHKAH
Load capacity: 500kg
Tilt drive: Hydraulic (stepless)
Travel drive: Chain
Weight without/with packaging: 363 / 388kg

Drive

Engine: Air-cooled 1 cylinder four-stroke engine (OHV)
Starter: Reversing starter
Power: 9,2PS
Gearbox: 6 forward gears / 2 reverse gears
Speed: forward gear
Forward gear: max. 8km/h
Reverse gear: max. 5km/h

Liquids

Fuel tank capacity: 6L (unleaded gasoline)
Hydraulic oil tank capacity: 3L (ISO VG 32)
Transmission oil tank capacity: 1.5L (SAE 80W-90)
Engine oil tank capacity: 0.9L (15W-40)
Max. Hydraulic oil flow rate: 9L/min

Basic dimensions

Total length platform folded: 1900mm
Total length platform unfolded: 2100mm
Total width (incl. chain): 710mm
Overall height: 1050mm
Container dimensions (inside): 740 x 665 x 435mm
Container dimensions (outer dimensions): 1060 x 710 x 520mm
Track width: 710mm
Load volume (liquid): ~ 200L
Load volume (heaped): up to 370L (depending on load)
Drive chain dimensions: 180 x 60 x 38mm
Ground clearance: 120mm
Packaging size: 1890 x 740 x 1220mm

Filling height

Side: 1030mm
Front: 810mm
Discharge height min./max.: 810 / 1440mm
