SCHORR RR500DHKASH PRO Minidumper Dumper

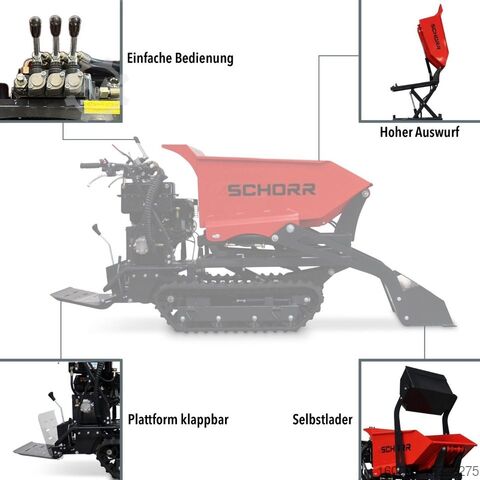

SCHORR track dumper RR500DHKASH PRO - Discover the advantages:
- 9.2 hp four-stroke engine
- Self-propelled & powerful track drive

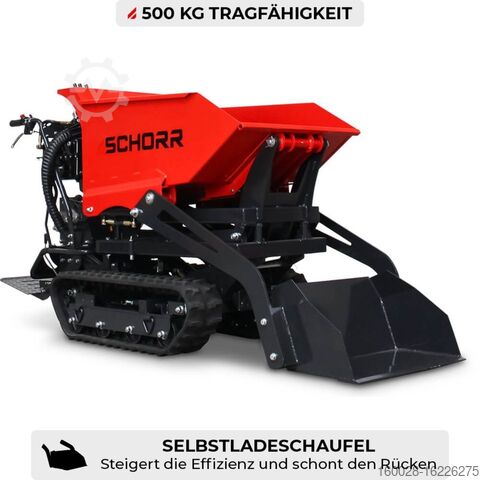

- Hydraulic bucket for self-loading
- Hydraulic scissor lift (discharge height 1.44m)
- 500kg payload
- Large & high-quality tipper body with large tipping angle
- Folding passenger platform as standard
- 6+2 gears

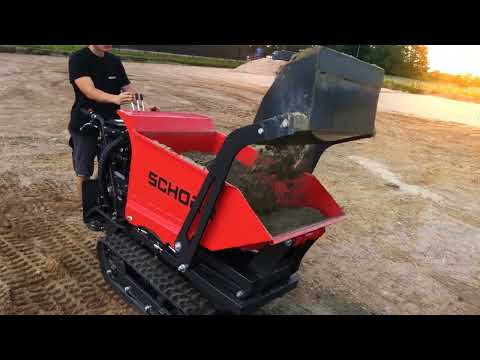

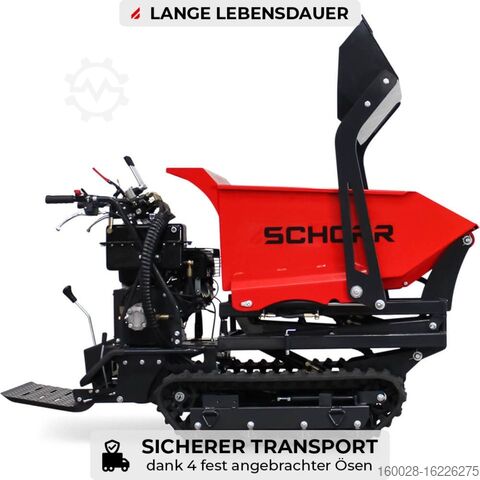

The SCHORR RR500DHKASH track dumper has a hydraulic tipping drive and a payload of 500 kg as well as a powerful 9.2 hp single-cylinder 4-stroke petrol engine. The special features of the RR500DHKASH are the hydraulically controllable scissor lift function and the self-loading shovel. With its help, you can effortlessly fill in the material and eject it up to a height of 1.44 m - ideal for trailers, containers or other higher areas.

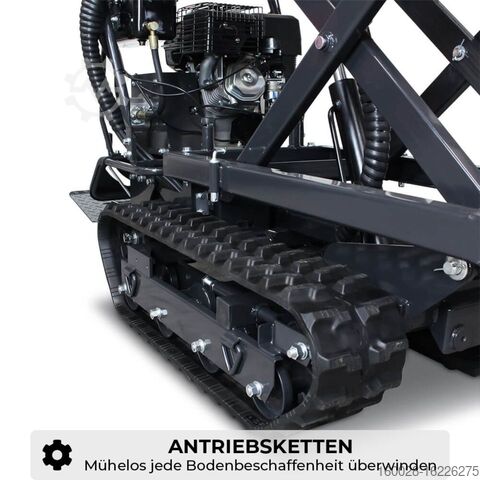

Thanks to its slim design (825mm), the minidumper can also drive through narrow paths, making it an extremely flexible means of transportation. Thanks to the minidumper's powerful track drive, you can also negotiate rough terrain, inclines and kerbs with ease. The rubber tracks provide a secure footing in any working area.

Lifting and lowering the tipper body / box is effortless and effortless thanks to the hydraulic tipper drive, even when fully loaded. With a robust body made of thick sheet metal and a straight outlet that ensures quick and easy discharge, this dumper is a must for anyone who needs to transport heavy loads. Even tipping on slight inclines is no problem.

The large tipping angle ensures that even fully loaded skips are emptied completely without you having to help manually. This saves time and effort and makes the motorized wheelbarrow an indispensable tool for anyone who values efficiency and performance.

TECHNICAL DATA:

Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR500
Model: DHKASH
Load capacity: 500kg
Tilt drive: Hydraulic (stepless)
Travel drive: Chain
Weight without/with packaging: 439 / 464kg

Drive
Itodpfxettg Uds Aczjf

Engine: Air-cooled 1 cylinder four-stroke engine (OHV)
Starter: Reversing starter
Power: 9,2PS
Gearbox: 6 forward gears / 2 reverse gears
Speed: forward gear
Forward gear: max. 8km/h
Reverse gear: max. 5km/h

Basic dimensions

Overall length platform folded: 2320mm
Overall length platform unfolded: 2520mm
Total width (incl. bucket): 825mm
Total height retracted/extended: 1230 / 1620mm
Total height with max. bucket inclination (90°) retracted/extended: 1780 / 2400mm
Container dimensions (inside): 740 x 665 x 435mm
Container dimensions (external dimensions): 1060 x 710 x 520mm
Bucket dimensions (inside): 650 x 320 x 300mm
Track width: 710mm
Loading volume (liquid): ~ 200L
Load volume (heaped): up to 370L (depending on load)

Filling height

Side: 1030mm
Front: 810mm
Discharge height min./max.: 810 / 1440mm
