SCHORR RR500DHKB2 PRO 500kg Raupendumper

The SCHORR RR500 DHKB 2 PRO track dumper is a versatile machine powered by a powerful 270 cm3 4-stroke petrol engine with 9.2 hp. This power enables the dumper to operate effortlessly even in outdoor applications and offers sufficient power for demanding tasks.

Advantages of the SCHORR RR500DHKA2 track dumper:
-- Powerful 9.2 hp four-stroke engine
-- Robust chain drive for high traction
-- 500 kg payload
-- Removable side walls for more loading volume
-- Automatic opening of the front when tipping
-- Folding ride-on platform as standard
-- 6 forward and 2 reverse gears

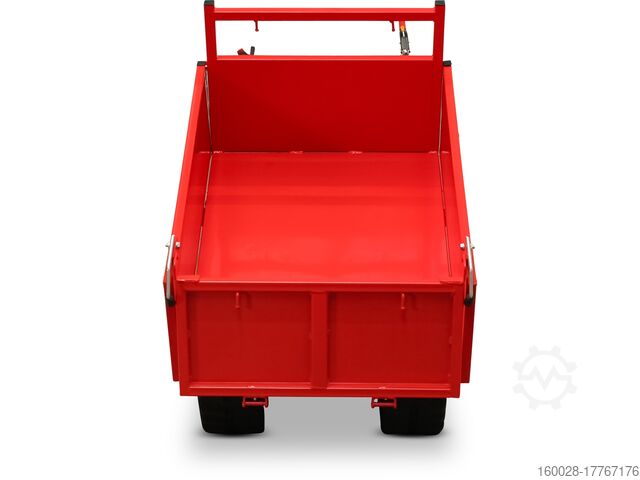

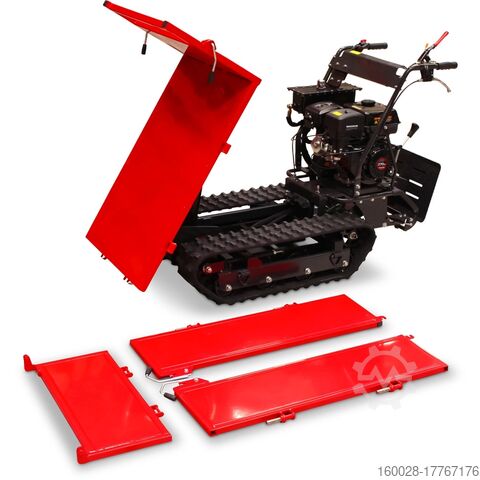

The box body made of robust sheet steel is equipped with removable side walls so that the loading area can be flexibly enlarged and tipping operations are possible without any problems even on slight inclines. A generous tipping angle ensures that even fully loaded skips can be emptied completely without the need for manual assistance.

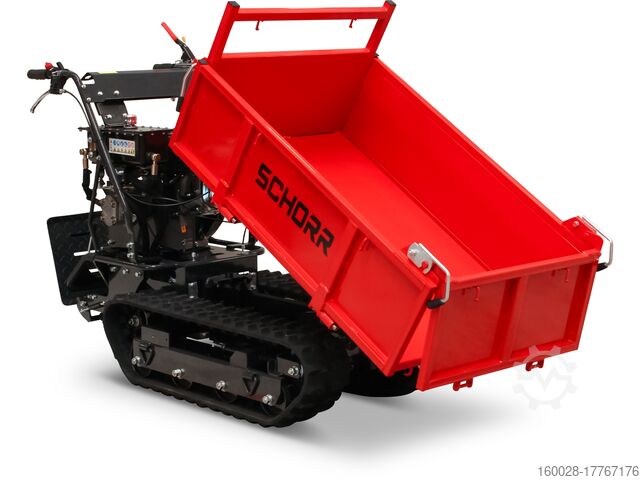

A major advantage of the dumper is the automatic opening of the front of the tipper body during the tipping process. This ensures particularly easy and convenient unloading, even when fully loaded.

The hydraulic tipping drive enables the tipper body to be raised and lowered effortlessly, while the extra-large hydraulic oil tank with integrated oil filter extends the service life of the machine and reduces maintenance requirements to a minimum.

The powerful track drive ensures that even uneven terrain, inclines and kerbs can be mastered with ease. The durable rubber tracks provide a secure footing in any working environment.

Technical data:
Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR500
Model: DHKB2
Load capacity: 500kg
Tilt drive: Hydraulic (stepless)
Travel drive: Chain
Weight without/with packaging: 305kg / 335kg

Drive system
Engine: Air-cooled 1 cylinder four-stroke engine (OHV)
Starter: Reversing starter
Power: 9,2PS
Gearbox: 6 forward gears / 2 reverse gears

Speed: forward gear
Forward gear: max. 8km/h
Reverse gear: max. 5

Liquids
Fuel tank capacity: 6L (unleaded petrol)
Hydraulic oil tank capacity: 3L (ISO VG 32)
Transmission oil capacity: 1.5L (SAE 80W-90)
Engine oil tank capacity: 0.9L (15W-40)
Ndjdpfx Afju Th Ekjqjc

Basic dimensions
Overall length platform folded: 1870mm
Overall length platform unfolded: 2105mm
Overall width (incl. chain): 770mm
Overall height: 1050mm
Container dimensions (inside): 1040 x 700 x 300mm
Container dimensions (outer dimensions): 1100 x 755 x 310mm
Load volume (painted): ~ 218L
Load volume (heaped): up to 500L (depending on load)
Drive chain dimensions: 180 x 60 x 38mm
Packaging size: 1600 x 770 x 1270mm

Filling height
with walls: 740mm
without: 445mm

It goes without saying that all spare parts are always in stock and available quickly if required. If technical support is required, our trained team is at your side. We can also carry out repairs for you in our own workshop.
We at SCHORR will be happy to answer any questions you may have about our motorized wheelbarrows. You can reach our competent team by phone or email. We look forward to hearing from you and being able to help you with advice.
