เครื่องกลึงอัตโนมัติ CNC

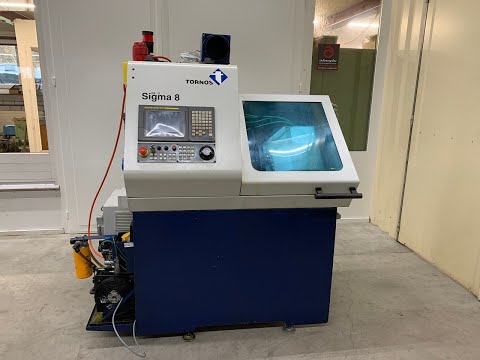

TORNOS SIGMA 8

Manufacturing origin CH
Netweight 1600 kg
Custom position 8458.9120
Dimensions 167x87x165 cm
With bar-feeder LNS Tryton 112

TECHNICAL DATA

Control Fanuc série 32i-B

5 linear axes :
Codpfof Nqzqox Am Ejrf
Longitudinal travel of main spindle Z1
Longitudinal travel of backwork counter spindel Z4
Cross travel of tools X1 (turning operations and cross milling)
Cross travel of tools Y1 (tools selection and milling operations)
Radial plunge of 2 tools (T21 et T22) X2

Spindel (mounted on Z1-axis) :
Max bar capacity 10 mm
Work travel 20 mm
Type of drawed collet W15
Max speed 15'000 min-1

Linear tools system mounted on 2 axes X1 and Y1

Tools system for turning comprising 2 slides controlled by X2-axis

Backwork counter-spindle with motor (on axis Z4) :
Max clamping 10 mm
Work travel 120 mm
Type of pushed collet F13 (76-00357)
Max speed 15'000 min-1

Spindles denomination S1 et S4
Least increment for axes programming 0.1 µ

Coolant pump max flow 50 L/min
Pump motor 1,1 kW
Oil tank 130 L
