สายพานลำเลียง สายพานลำเลียง สายพาน GF

Transnorm 12500-600-500

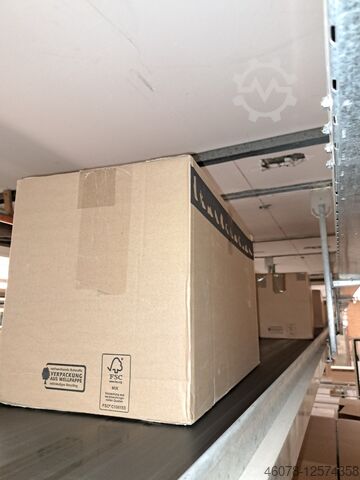

Transnorm conveyor belt GF 12500-600-500

RA2097

Technical data:

Conveyor length (NL): 12500 mm
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor, R27 DT90S4/Th
Electrical data: 50Hz V380-500, kW 1,1 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Ffodpfxon U Dy Ae Aamst
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
