สายพานลำเลียง สายพานลำเลียง สายพาน GF

Transnorm 8500-600-500

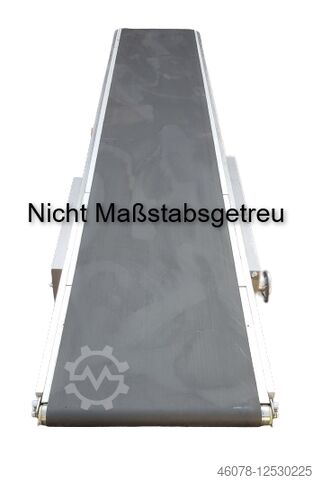

Transnorm conveyor belt GF 8500 -600-500

RA2088

Technical data:

Conveyor length (NL): 8500 mm
frame width (NB): 600 mm, 700 mm with motor
belt width (GuB): 500 mm
Overall height (BH): 80 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor, R40DT80N4BMG
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
Fjdpfxon Tpvvs Aamsft
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
