เครื่องเจียรทรงกระบอก - สากล

V-TRADE (VOLZ) BMT 32150 UH

grinding diameter 320 mm
grinding length 1500 mm
centre height 180 mm
workpiece weight max. 150 kg
grinding wheel size 400 x 50 x 203 mm
grinding wheel speeds 1670 U/min
grinding head - swivable +/- 30 °
adjustment grinding slide 246 mm
workpiece spindle stepless 25-220 U/min
grinding wheel adjustment manuell 0,01 / 0,0025
Fpjdpfx Aewyd S Dsamsb
taper in spindle headstock MK 4
taper in spindle tailstock MK 4
Number of working hours ca. 20 h
total power requirement 5,5 kW
weight of the machine ca. 4,3 t
dimensions of the machine ca. 4,3 x 2 x 2 m

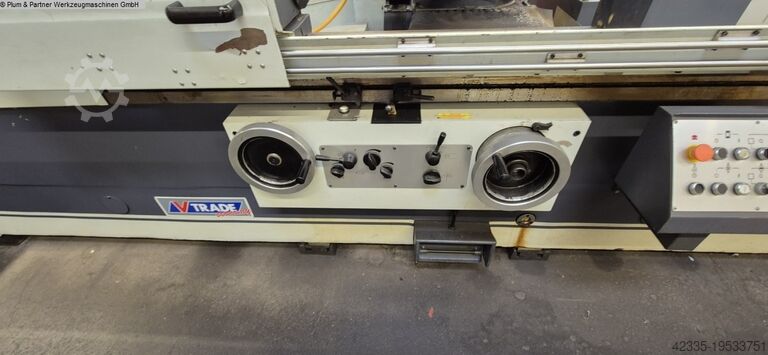

Hydraulic universal cylindrical grinding machine with a machining length of
1500 mm and a grinding diameter of 320 mm, with internal grinding attachment.
Rotatable workpiece spindle head and swiveling table, hydraulic longitudinal
table movement, hydraulic rapid traverse of the grinding head, hydraulic
grinding head feed when reversing the table, manual + hydraulic adjustment of
the tailstock quill. For further details, see data sheets, pics 9 and 10.
Commissioning 2015: The machine was only used for a FEW HOURS on special
workpieces, and then the orders dried up!
