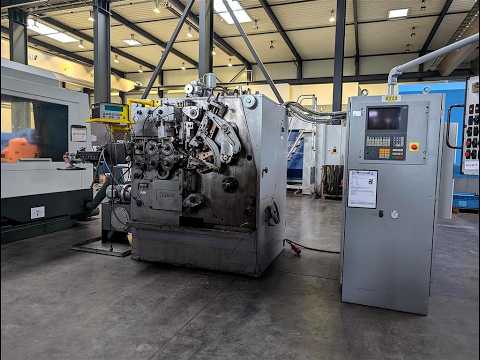

Wafios FUL 8

The machine was equipped with a new control system in 2000!

A programmable, electronically-hydraulically controlled universal spring coiling machine for the production of right-hand and left-hand tension and compression springs, as well as coil springs.

The springs can be produced with any desired pitch and shape of the spring body.

TECHNICAL DETAILS

Wire diameter max.: 9 mm
Wire diameter min.: 2 mm

Production capacity max.: 90 pieces/min

Spring diameter (outer): 10 - 120 mm

Wire feed speed: 27 - 80 m/min
Wire feed length: unlimited

Two-finger system
Wire thickness: 2 - 9 mm
Spring diameter (outer): 10 - 120 mm

Single-finger system
Wire thickness: 3 - 7 mm
Spring diameter (outer) max.: 60 mm

MACHINE DETAILS

Operating voltage: 380 V / 50 Hz
Control voltage: 220 V
Total power consumption: 18 kW

Dimensions & Weight
Machine dimensions (L x W x H): 3,300 x 1,500 x 1,450 mm
Lubrication system dimensions (L x W x H): 830 x 650 x 1,000 mm
Control cabinet dimensions (L x W x H): 700 x 1,500 x 1,750 mm
Machine weight: approx. 5 t

EQUIPMENT
5x feed rollers, wire holder 3 mm, two-finger
Spring length measuring device (Model: LION PRECISION-PANTHER)
Wire roll holder POST, motor-driven, mandrel holder (diameter: 1,400 mm)
Lubrication system
Control cabinet cooler RITA
Hydraulic unit
