Walter WP

Hydraulic Straightening Press
Manufacturer: WALTER
Type: WP
Machine No.: 151/6
The press has a table size of
Length Width Thickness
1000 390 60 mm
Cylinder stroke: 400 mm
The current distance between cylinder and table is 450 mm. When the table adjustment is set to the lowest notch, the gap between table and cylinder is 850 mm. (See the attached sketch for details)

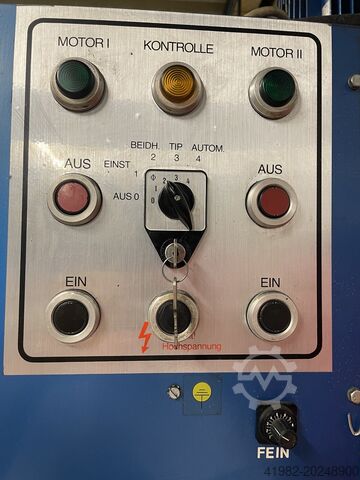

The machine is also equipped with an appropriate control system.

Dkedpfxoxl Tmfe Ahxju
Max. Pressing force: 60 tons
180 bar
Table height adjustment approx.: 1000 mm (installation dimension)
Motor power: 4 kW
Two-hand control
Emergency stop
Foot pedal
Stroke limitation via limit switch
