กดคอลัมน์เดียว - ไฮดรอลิก

WMW Zeulenroda PYTE 3.15

Technical details:

Pressure: 3 t
throat: 150 mm
max. ram stroke: 280 mm
daylight dimension with clamping plate Slide/ up: 355 mm
distance table/ram: 355 mm
clamping plate on table: 280 x 290 x 50 mm
passage opening in table: Ø 100 mm
Cedpfx Ageu Nfvboljrh
ram speed - forward: 0,1 m/s
ram speed - reverse: 0,3 m/s
mortise hole in ram: Ø 20 x 40 mm
height over floor: 800 mm
total power requirement: 1,5 kW
weight of the machine ca.: 370 kg
dimension machine xH: 0,8x1,2x1,9 m

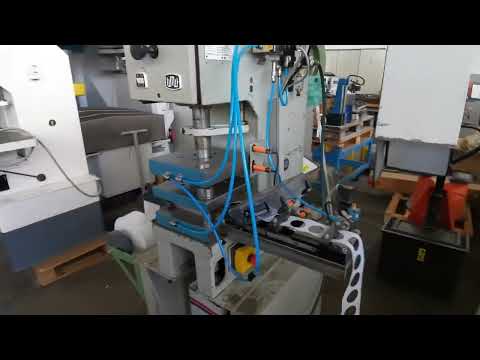

The single column press stands on a lower table (welded steel plate)
Operation via foot switch

The press has been modified
-intake for foil for punching device
-punching device FIBRO (plastic disc with Ø 47,5mm for punching)

*
