เบรกกด - ไฮดรอลิก

AMADA HFE 170-3

pressure 170 t
chamfer lenght 3170 mm
distance between columns 2700 mm
column arm 420 mm
dayligth 470 mm
stroke 200 mm
ajustment speed 100 mm/sec
working feed 10.0 mm/sec
Nedpfsxabgpex Ah Sswc
return speed 100 mm/sec
table width 180 mm
table height 960 mm
oil volume 235 L
0 300 bar
controlled axis 6 Anzahl
Number of working hours 29.400 h
total power requirement 16.5 KW
weight of the machine ca. 11910 kg
range L-W-H 4025 x 2020 x 2900 mm
well-maintained condition (!!)
with only approx. 29.400 operating hours

- in checked condition - machine video -
?v=APP0HZjMms4

Equipment:
- electro-hydraulic CNC press brake
- AMADA CNC control "OPERATEUR 2" - 6 axes (X, Y1 + Y2, R, Z1 + Z2)
* swiveling operation - front left
* tool & program library
- CNC-controlled back stop adjustment (X-axis)
* adjustment range .. 700 mm
- CNC-controlled vertical adjustment of the stop fingers (R-axis)
* adjustment range .. 250 mm
- CNC-controlled adjustment of the stop fingers left-right (Z1 + Z2)
- hand control unit for manual movement of the axes

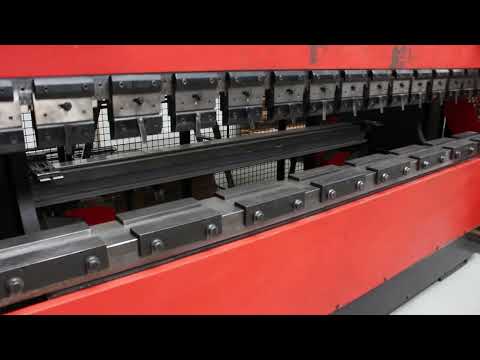

- AMADA manual upper tool clamping system
- AMADA Rehfuß upper tools - divided
- AMADA Lower tool holder - incl. 1x V die (not complete)
- AMADA DIGI PRO - gigital angle measuring system
- 1x freely movable double foot switch
- side protective device (swinging doors)
- rear protective device (swinging door)
- EMERGENCY OFF button at the front
- Operating instructions (ENG)
