Used Laser Cutting System – BLM LT JUMBO 14+24
Year of manufacture: 2015 | Manufacturer: BLM GROUP | Condition: Very good, immediately operational
_____
Technical Specifications
Machine type:
Fully automatic laser cutting system for tubes and profiles of large dimensions (Lasertube system)
Processable geometries:
• Round tube: Ø 80 mm – 610 mm
• Square tube: 80 x 80 mm – 450 x 450 mm
• Rectangular tube: 80 x 120 mm – 500 x 300 mm
• Open profiles: up to 500 x 300 mm cross-section
Materials:
Mild steel, stainless steel (others upon request)
Wall thickness:
Maximum cutting thickness: up to 16 mm
Laser output:
Standard: 3,500 watts (higher power available on request)
Length processing:
Codpfxowxw Ebo Aglsrh
• Loadable bar length: 4,000 mm – 18,000 mm
• Discharge length for short parts: up to 3,200 mm
• Discharge length for long parts: up to 18,000 mm
Weight capacity:
Tube weight up to 300 kg/m
Positioning accuracy:
Repeatability ± 0.1 mm
Optimum final precision thanks to 3D laser head and integrated probe for tube deformation compensation
_____
Equipment and Features
• 3D cutting head for bevel cuts, notching, and coped holes

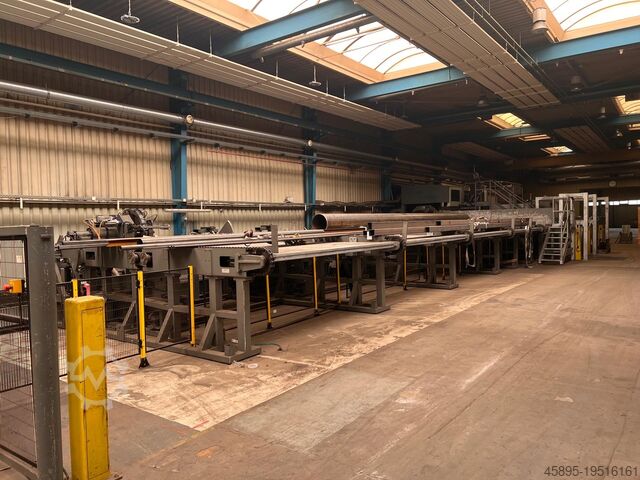

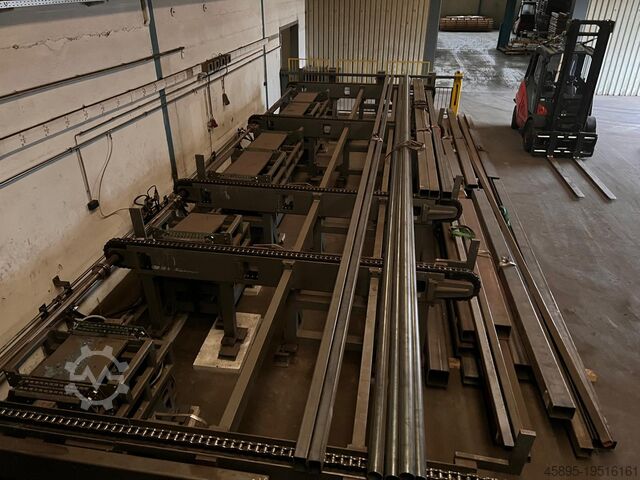

• Fully automatic loading and unloading (including concealed loading with double chain system)
• Automatic residual piece management
• Central discharge station for short workpieces with drop protection system
• Cutting cabin with large viewing window and optional camera system
• Integrated CAD/CAM software: Artube (incl. STEP, IGES, X_T support)
• CIM software for production planning and monitoring
• Digital control: Siemens 840D, 38 axes at maximum configuration
• Processing without tool change – no retooling required for new geometries
_____
Typical Applications
• Steel and metal construction
• Mechanical engineering and heavy vehicle components
• Agricultural machinery
• Shipbuilding and railway construction
• Tube manufacturing for prototypes, small to large series
