Dardontech PBE Series (PBE-1000 / PBE-1400 / PBE-20

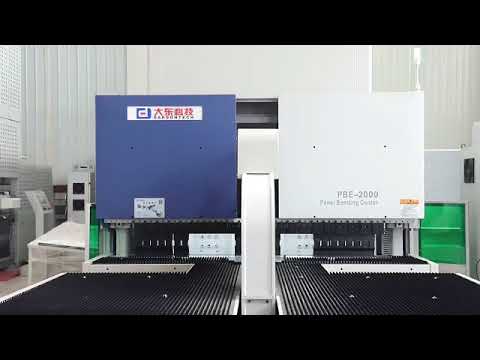

NEW – PBE Series Automatic Panel Bending Center | 5 models available | Immediate delivery from stock
Condition: New, Year of construction: 2025, Functionality: Fully operational
TECHNICAL SPECIFICATIONS:

Max. bending length: 1,000 mm (PBE-1000) – 3,000 mm (PBE-3000) | Customizable
Max. bending width: 1,000 mm (PBE-1000) – 1,400 mm (PBE-1400) | Customizable
Max. bending height: 170 mm (all models) | Min. 110 mm for t-1 mm available on request
Minimum workpiece size (all four sides): 110 mm (PBE-1000) / 200 mm (PBE-1400 to PBE-3000)
Minimum workpiece size (one side): 100 mm (PBE-1000) / 170 mm (larger models) | Hemming: 130–180 mm
Bending angle: ±0–180° (all models)
Minimum sheet thickness: 0.35 mm

MAX. HOLDING FORCE (Standard / Heavy):

PBE-3000: 115 T / 155 T
PBE-2500: 80 T / 115 T
PBE-2000: 38 T / 53 T
PBE-1400: 28 T / 38 T
PBE-1000: 20 T

MAX. MATERIAL THICKNESS (Standard / Heavy):
Material PBE-3000 PBE-2500 PBE-2000 PBE-1400 PBE-1000
Stainless Steel (SS) 1.2 / 1.5 mm 1.2 / 1.5 mm 1.2 / 1.5 mm 1.2 / 1.5 mm 1.2 mm
Aluminium (AL) 2 / 3 mm 2 / 3 mm 2 / 3 mm 2 / 3 mm 2 mm
Mild Steel (MS) 1.5 / 2 mm 1.5 / 2 mm 1.5 / 2 mm 1.5 / 2 mm 1.5 mm
Hnjdpfxsymcvte Aa Del

Power supply: 380V 50/60Hz (transformer available as an option)

MACHINE FEATURES:

• Automatic multi-sided bending – no tool changes required
• Universal tooling automatically adjusts to programmed dimensions
• Positive and negative bending in a single setup: arcs, hemming, combined angles
• Bending speed 0.2 s/bend – 3× faster than conventional CNC press brake
• Intelligent CNC control system for consistent, repeatable results
• Single setup positioning – first-edge shearing error is controlled
• Multiple positioning references selectable according to workpiece geometry
• Energy-saving design – reduces labor and tooling costs

TYPICAL APPLICATIONS:
Fire doors, elevator panels, computer cases and enclosures, furniture, integrated kitchens, HVAC covers, commercial cold chain equipment, lighting, storage shelving, ceiling panels, air purifiers

INCLUDED SERVICES:
• 12-month warranty
• Spare parts availability
• Technical support and commissioning
• CE documentation available upon request

Offered by HawkTech s.r.o. – certified industrial machinery dealer, Czech Republic. Delivery to CZ, SK, and EU. Price on request.
