เครื่องกัดลอกแบบ

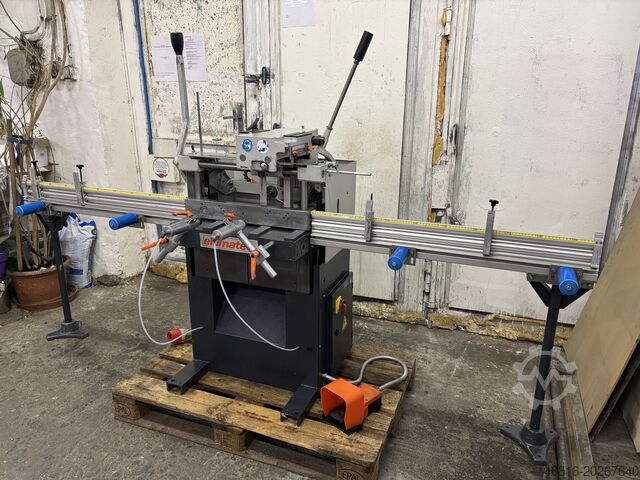

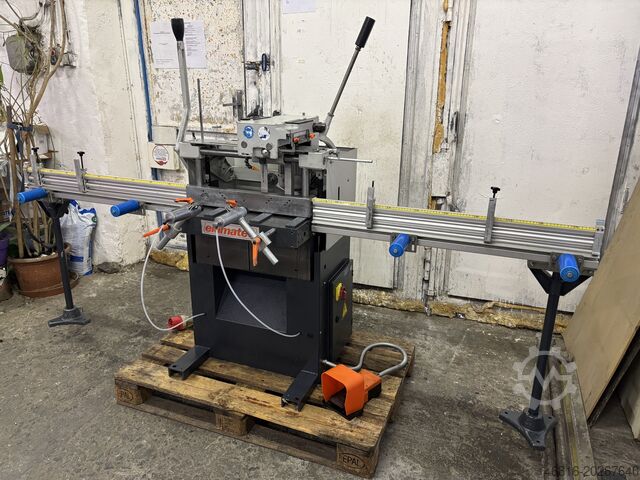

elumatec AS 170/00

Large cutting range despite compact design
Copy routing using side stops or templates at a ratio of 1:1
Pneumatic tracer point with two levels for two different cutter diameters
Our patented copy lever suspension ensures precision routing with a minimum of effort
The table height is adjustable to accommodate very high profiles of up to 400 mm
The “Spindle Lock” feature makes tool changing easy

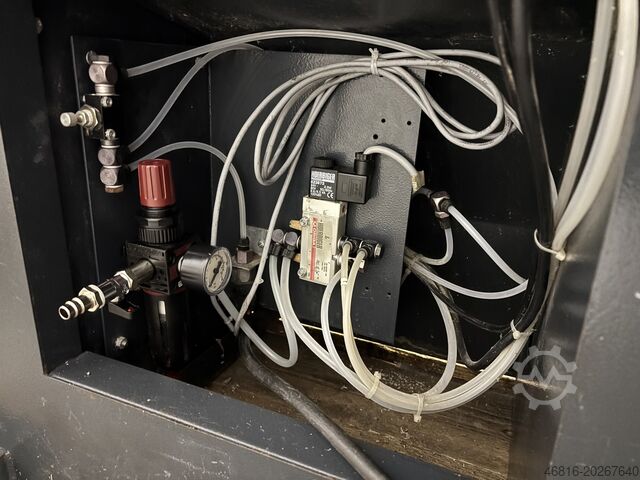

Pneumatic material clamping unit
Pulsed coolant system

Horizontal cutting range using a stop 300 x 120 mm
Horizontal cutting range using a copy template 285 x 110 mm
Spindle speed 12,000 rpm
Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm
Travel 105 mm
Power supply 230/400 V, 3~, 50 Hz
Power output 0.74 kW
Compressed air supply 7 bar
Fodpfx Aexmux Eshuspn
Air consumption per working cycle 12 l without spraying, 24 l with spraying
Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg

-New spindel bearings
-Machine is operation ready
-Shipping possible
