เครื่องกัดสำเนา

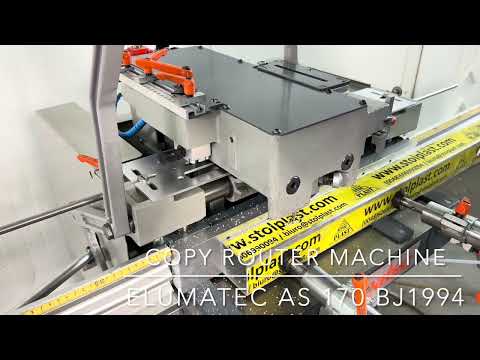

Elumatec AS 170

ELUMATEC AS 170 – Single-spindle profiling machine
Technical data
Milling area, horizontal, against stop: 300 x 120 mm
Milling area, horizontal, using template: 285 x 110 mm
Milling spindle speed: 12,000 rpm
Profile clamping range: 150 x 130 mm, adjustable up to 400 mm
Stroke: 105 mm
Electrical connection: 230/400 V, 3 ~, 50 Hz
Power output: 0.74 kW
Compressed air connection: 7 bar
Air consumption per working cycle:
12 l without spray device
24 l with spray device
Dimensions AS 170/00
Length: 780 mm
Itsdpfeza Iifjx Agpji
Depth: 770 mm
Height: 1,500 mm
Weight: 200 kg
Features
Large milling area despite compact design
Profiling using side stops or templates (1:1)
Pneumatic, two-stage tracing device for different cutter diameters
Patented suspension of the tracing lever for precise milling
Table height adjustment for profiles up to 400 mm high
“Spindle Lock” for quick tool changes
Pneumatic material clamping device
Metering spray device
