เครื่องกัดสำเนา

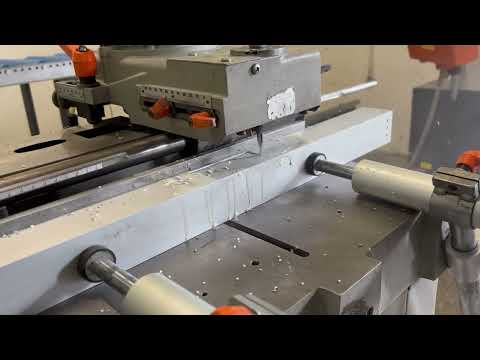

elumatec AS 70

Horizontal cutting range using a stop 230 x 90 mm
Horizontal cutting range using a copy template 230 x 90 mm
Spindle speed 12,000 rpm
Clamping range for profiles 180 x 130 mm
Travel 110 mm
Power supply 230/400 V, 3~, 50 Hz
Power output 0.74 kW
Compressed air supply 7 bar
Air consumption per working cycle 12 l without spraying, 24 l with spraying
Length 720 mm, depth 650 mm, height 1,440 mm, weight 120 kg

Versatile for many applications in aluminium and PVC profile machining
Precision routing with a minimum of effort and easy, two-lever operation
Copy routing at a ratio of 1:1 transfers the cutting pattern from a template to the profile
Your own custom templates can be created (by copying the template to a blank)
Copy routing using stops is also possible (only rectangular cutting patterns)
Can be set up in only a few steps
Pneumatic material clamping unit
Manual tracer point with three levels for different cutter diameters
Pulsed coolant system

Nsdpfxjzz Aqlo Ahledc
The machine is ready for operation, we can ship the machine to your address.
