ศูนย์เครื่องจักรกลแนวตั้ง

FANUC ROBODRILL α-D21LiA5

TECHNICAL DATA
Brand: FANUC
Model: ROBODRILL α-D21LiA5
Year: 2013
CNC: FANUC 31i-MODEL B5
Serial Number: P135 YH478

TABLE DIMENSIONS
Table size: 850 x 410 mm
Load capacity: 300 kg
T-slot spacing: 125 mm
Number/size of T-slots: 3 x 14 mm

TRAVELS
X-axis travel: 700 mm
Y-axis travel: 400 mm
Z-axis travel: 330 mm
Distance from table to spindle nose: 150 to 480 mm

FEEDS
Rapid traverse X/Y/Z: 54 m/min
Cutting feedrate: 1 to 30 m/min

MOTORS
Drive motor: 11 kW (1 min) / 3.7 kW continuous
Feed motors X/Y/Z: α8/4,000is (2.9 kW)

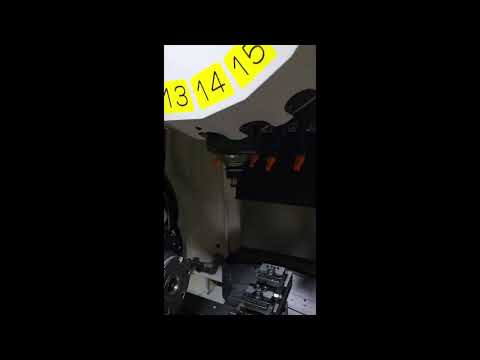

TURRET
Taper: MAS BT 30
Drawbar type: MAS P30T-1 (45°)
Column to spindle center distance: 400 mm

PRECISION
Positioning accuracy: 0.006 mm
Repeatability: ±0.004 mm
Tool magazine capacity: 21
Maximum tool length: 250 mm
Tool change time: Approx. 1.8 s

SPINDLE
Spindle speed range: 100 to 10,000 rpm
Spindle taper: 7/24 Taper No. 30
Internal cooling
Godpfx Ahoy At Aqo Ejiu

MACHINE DIMENSIONS
Machine height: 2,236 ± 10 mm
Floor space required: 2,115 x 2,040 mm
Machine weight (including control section): Approx. 2,100 kg

POWER SUPPLIES
Electrical supply: 11 kVa
Compressed air requirement: 0.35 to 0.55 MPa (gauge pressure) (0.5 MPa recommended), 0.15 m3/min (150 l/min) (at atmospheric pressure)

ACCESSORIES
Original FANUC 4th axis rotary table DDR (new price €18,000)
Zero point clamping system Schunk NSE plus 138-V1 mounted on rotary (new price €2,100)
Two Schunk KONTEC KSM2 90-400 vices (new price €2,000 each)
