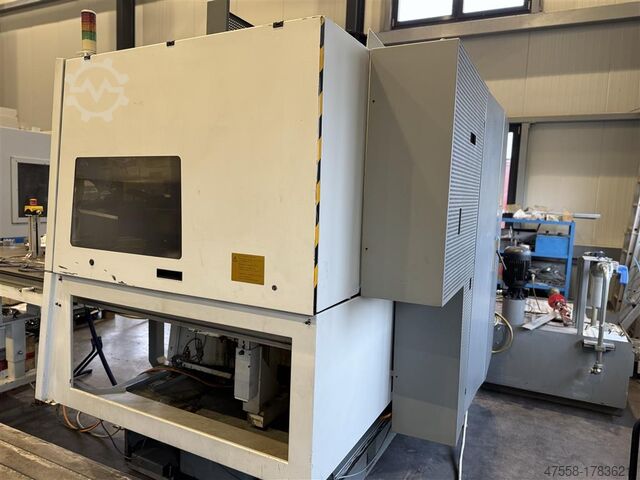

GILDEMEISTER CTV250

Technical details:

turning length: 300 mm
x-axis: plan: 800 mm
longitudinal traverse (z-axis): 300 mm
control: Siemens 840D
revolution per minute: Hauptantrieb: 20 - 5000 U/min
Revolution driven tool (turret): 6000 U/min.
revolution per minute: C-Achse: 0 - 100 U/min
spindle bore: 79 mm
Torque: Hauptantrieb: 200 Nm
max. torque on the spindle: 240 Nm
max. torque at clamping center: Werkzeugträger: 28 Nm m
rapid motion - x-axis: 100 m/min
rapid traverse Z-axis: 45 m/min
tool turret - number of stations: 12 Stationen / Stations
tool taper: VDI 40
Main spindle capacity: 27 / 20 kW
spindle hours: 42.400 h
operating hours - idle run: 93.728 h
electrics - voltage/frequency: 3~ / 400V / 50Hz V/Hz
interface: ja
total power requirement: 50 kVA
Nodpfx Absvamgxe Tslf
Weight approx.: 8,0 t
dimension machine approx.LxWxH: 3,2 x 3,95 x 2,8 m
dimension L-W-H: Späneförderer: 3400 x 1150 x 2180 mm

Application:
This vertical lathe is suitable for 2-axis machining (turning, drilling; milling, Y-axis) of chucked parts.

Equipment:
-High-pressure coolant unit BMF for 500 liters
-Make Bürener chip conveyor with oil mist separator/industrial filter ifs/ IFM 1000CTV (electrostatic extraction)
-Workpiece loading and unloading device with/for 20 stations

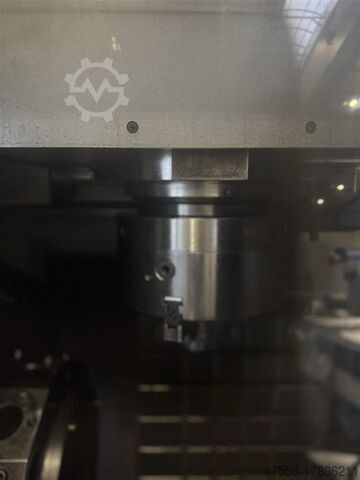

-Power chuck Ø 225mm, foot switch
-Clamping surface in the work area: W: 340 x H: 430mm with 7x T-slots according to DIN 650
-Hydraulics
-6x various turning tool holders and 2x various tool holders (revolving)



*
