เครื่องม้วนแผ่นโลหะ 3 ลูกกลิ้ง

gosmeta 2100x9mm

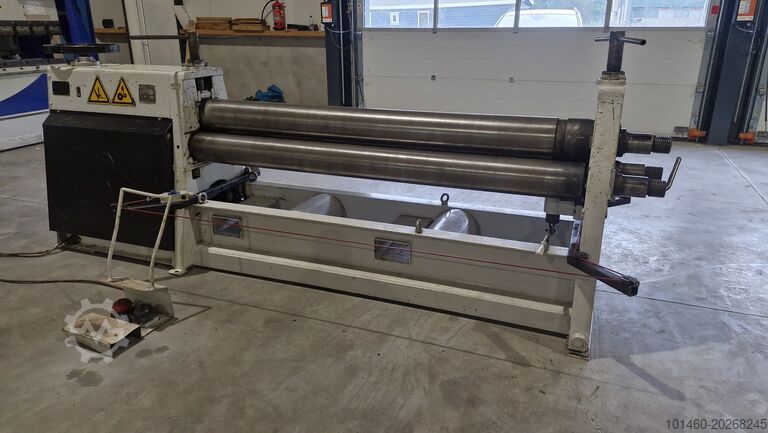

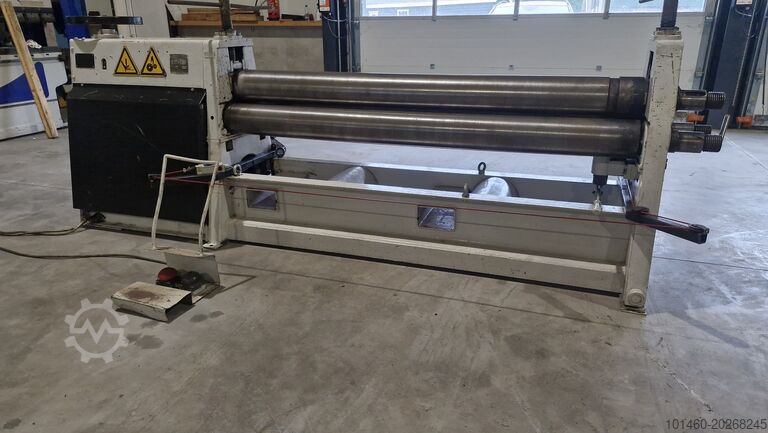

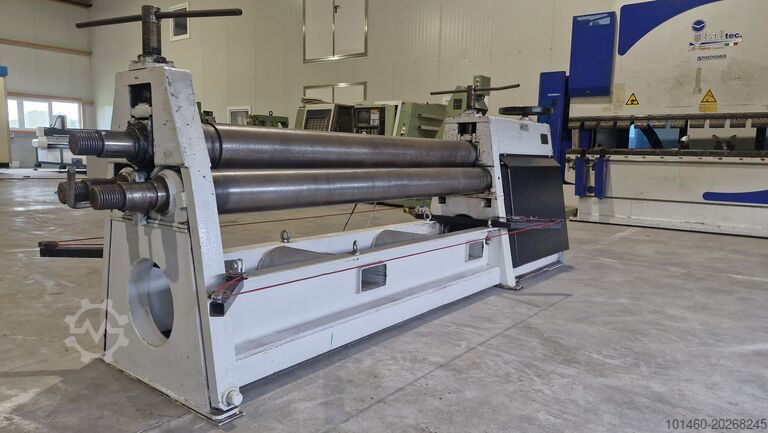

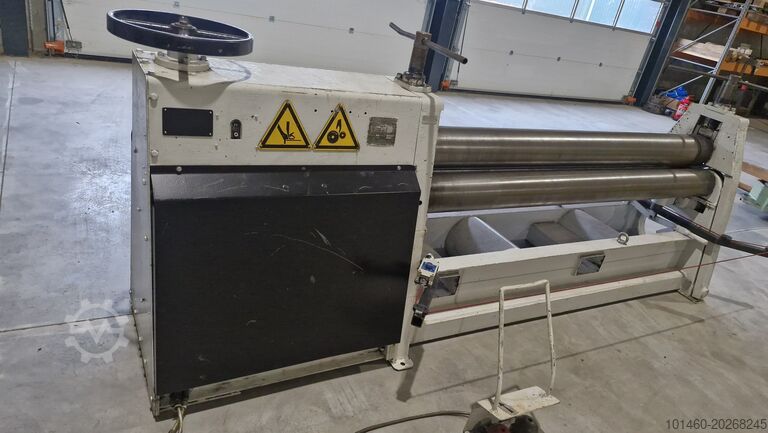

Type: gosmeta 3-roll plate bending machine
Maximum rolling length: 2100 mm
Estimated rolling thickness (S235) over the entire length: between 8 and 10 mm

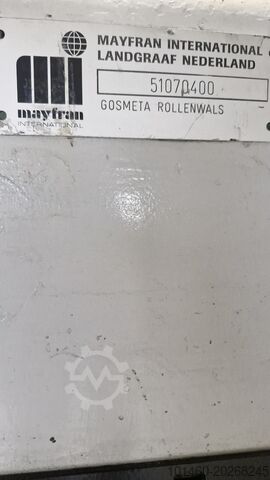

Exact value not known, as the nameplate is unreadable

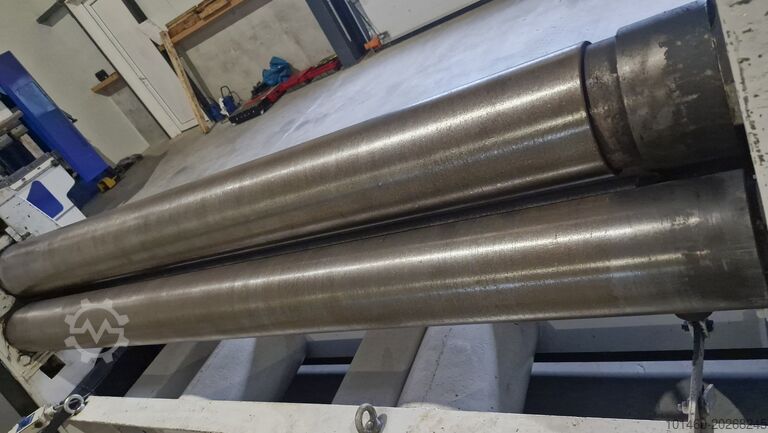

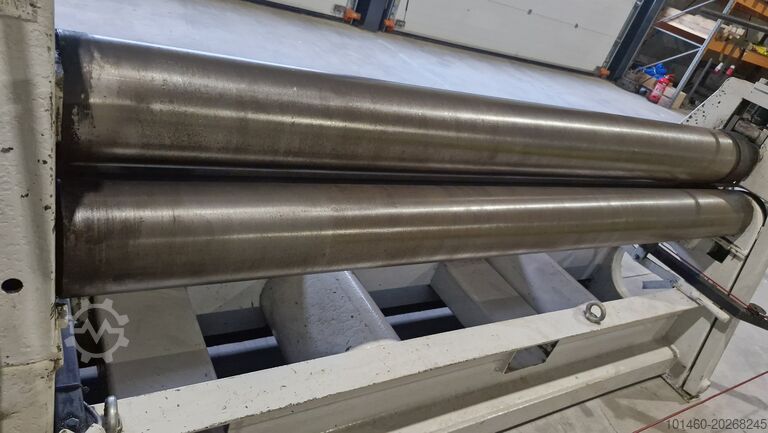

Top roll diameter: 190 mm
Lower roll diameter: 170 mm
Rolling speed: 5.3 m/min
Lower rolls: powered
Drive: electric
Side: fold-away for removing edge-bent products
Shafts for profile rolls: 3 × Ø 90 mm
Foldable side for removing closed cylinders.

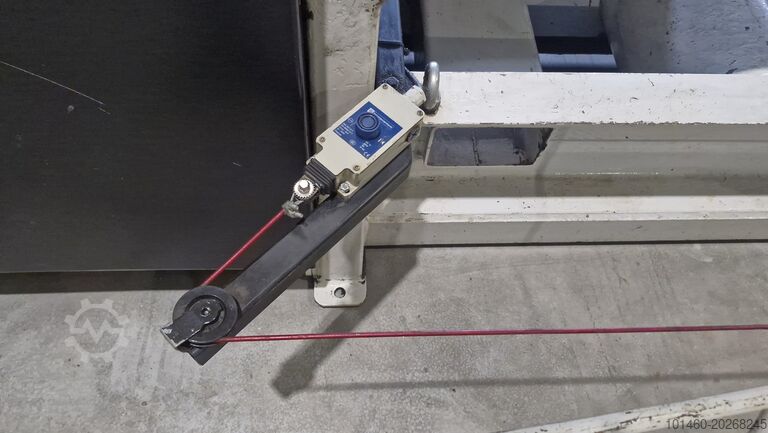

Equipped with emergency stop wire around the machine.
Fedpjxmvhzefx Ahuepn
Profile rolls or special segment rolls can be mounted on the 3 × Ø 90 mm shafts.
Machine dimensions: length 360 cm x width 120 cm x height 140 cm
Weight approx. 2800 kg
