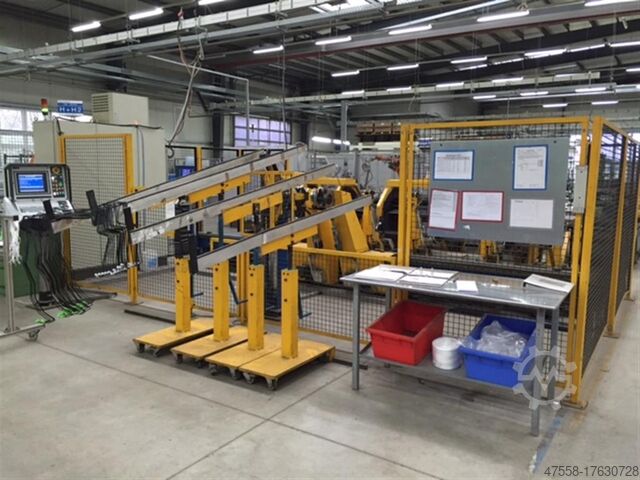

เครื่องดัดท่อไฮโดรลิค

HIRSCHMILLER und HÖHN NCB 4000

Technical details:

tube diameter: 4,75 - 8,0 mm
wall strength: - mm
bending radius min.: unterschiedlich, various, variada mm
bending angle max.: 180 °
compressed air: min 4,5 bar
Total power requirement: ca. 10 kW
Weight approx.: 6,0 t
dimension machine xH: 6,3x3,7x2,0 m
dimensions electric cabinet: 1,8x0,5x2,7 m
dimension control panel: 0,85x0,68x1,65 m

fully automatic numeric control
for bending of hydraulic supply pipes, car brake pipes various length
- various numbers of bending possible (max. 100 bendings per pipe)
- 2 independent bending module, every modul has 2 NC axis with functions:
" longitudinal process (axis 1 and 3) and " turning of bending head" and bending (axis 2 & 4)
- program memory for 250 pipes (lines)

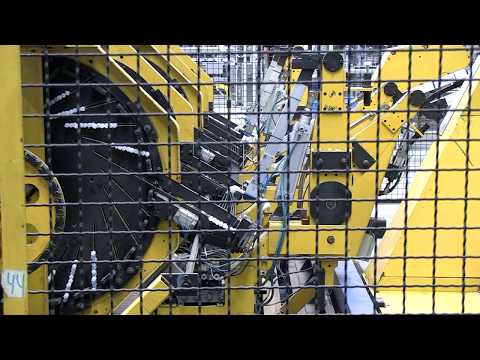

- the feeding unit consits of manual a manually filled drum magazine (drum magazine pipe dia.=4,75mm up to dia=8,0mm with 500/1000 pcs)
- load swiveling arm

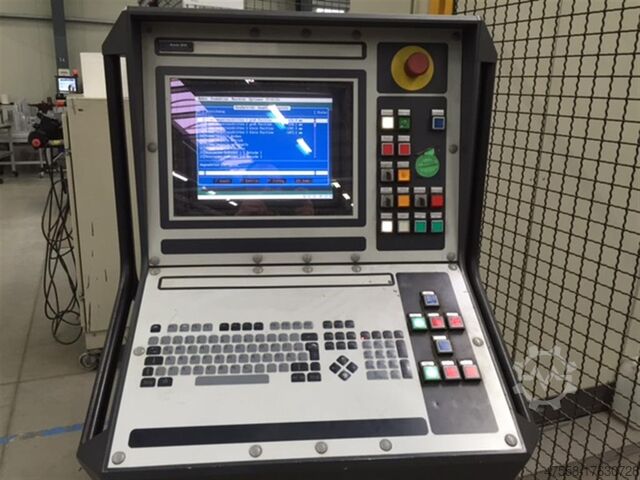

- control panel Bundy GHF 60134

accessories:
- div. single and add-on parts
