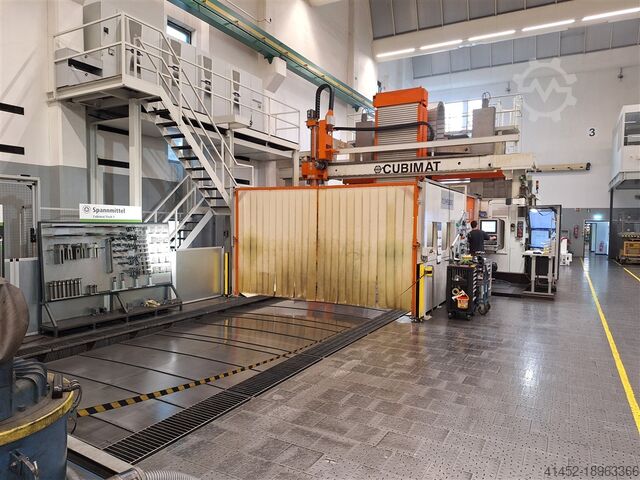

เครื่องกัดพอร์ทัล

KOLB CUBIMAT VD

x-travel 6500/13150 mm
y-travel 4000 mm
z-travel 1250 mm
w-travel 2250 mm

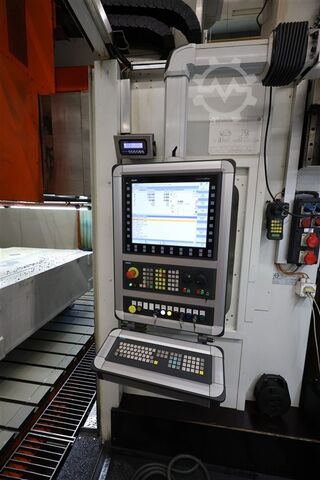

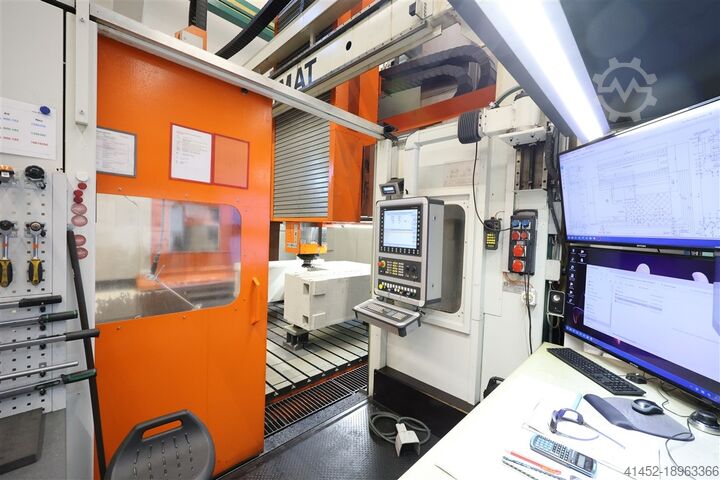

control Sinumerik 840 D
table surface area 5500/12150 x 3000 mm
distance between columns 3500 mm
max. distance between table and spindle-nose 3000 mm
max. workpiece weight 70000 / 105000 kg

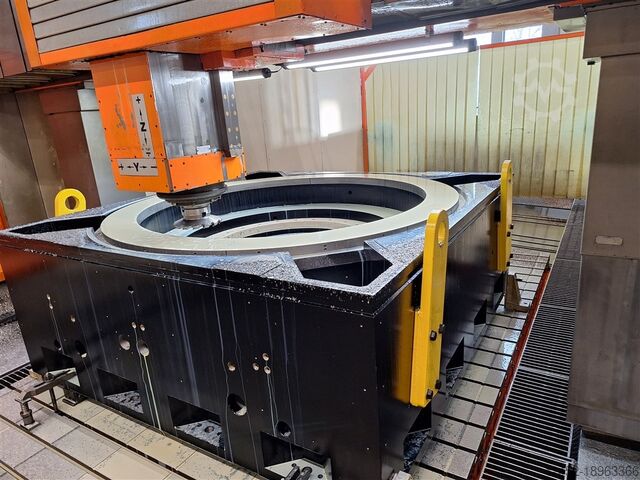

ram head dimension 480 x 510 mm
spindle turning speed - stepless 6,3 - 4000 U/min
milling spindle motor 63 kW
max. torque on the spindle 3300 Nm
tool taper DIN 39871 AD ISO 50
feed speeds X/Y/Z= 24000 mm/min
total power requirement 120 kVA
weight of the machine ca. 245 t
dimensions of the machine ca. 29 x 7,7 x 8,1 m
Kjdpowa Dx Refx Ag Tewt
The Machine is in almost new condition - in 2020, it was completely retrofit
and modernized for 1.6 million Euro!

Equipment/accessories:
- automatic tool magazine for 153 tools

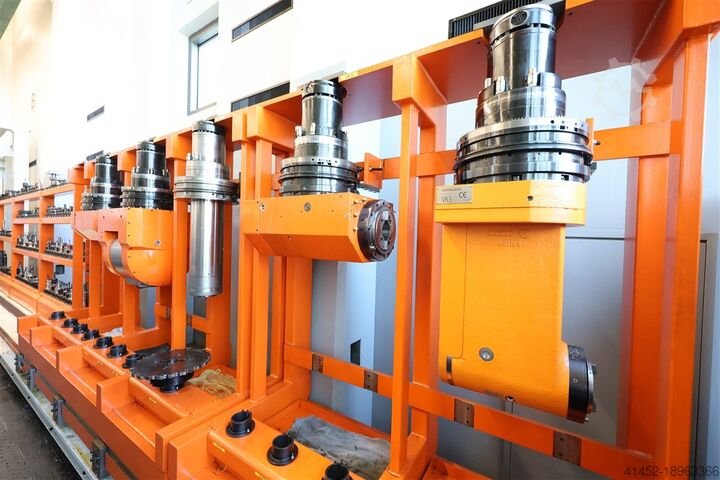

- automatic milling head magazine for 6 milling heads
- machining modules/ milling heads:
1. machining module -straight - straight long -
2. machining module -standard angle - 4000 rpm, 144 x 2.5°, ISO 50
3. machining module -narrow angle extended -40 kW, 4000 rpm, 1800 Nm, 144 x 2.5°, ISO 50
4. machining module -universal index - 40 kW, 4000 rpm, 2100 Nm,
- C-axis 144 x 2.5° , B-axis +/- 44 x 2.5°, ISO 50

- coolant unit
- chip conveyor
- technical documentation
