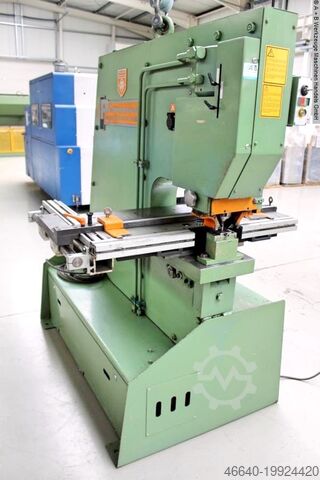

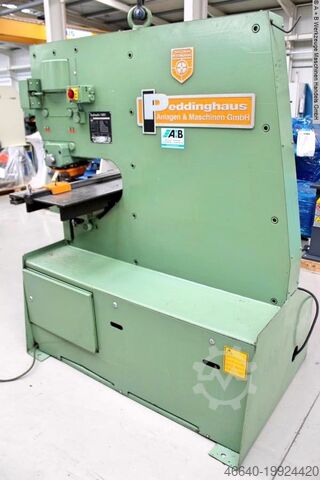

PEDDINGHAUS HYDRAULIC 1001

pressure 100 t
punching cross-cut in cmm Ø 31 in 25 mm
stroke 10 - 50 mm
column arm 510 mm
work height max. 1100 mm
Kdodpexabrfjfx Ag Dsw
no. of strokes 14 - 45 Hub/min
punch diameter max. Ø 90.0 mm
oil volume 103 l
total power requirement 7.5 kW
weight of the machine ca. 2400 kg.
range L-W-H 1750 x 1020 x 2050 mm
maintained condition (!!)
New price without accessories approx. 25.000 euros
Special price on request

Furnishing:
- heavy / robust electro-hydraulic hole punch, with large throat

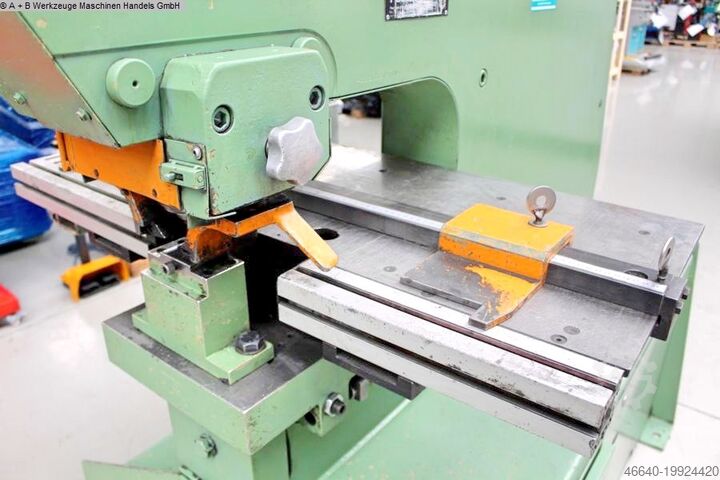

- Punching station with material/sheet metal scraper
- stepless stroke adjustment .. 10-50 mm
- freely movable foot switch including protective cover
- hydraulic low pressure finder for foot switch operation
- Crane hanging eye for easy transport
- side storage area
- Hydraulic unit, integrated
- Three-phase motor, 400 volts, 50 Hz
- original instruction manual
