สายคอยล์

SCHLEICHER / SCHNUTZ HE 355 - 2100 / RME 18/50/13-2

material width 2000 mm
coil weight 35,0 t
material thickness 0,6 - 2,5 mm
coil internal diameter - 610 mm
coil external diameter 900 - 1900 mm
material cross-cut 1600 x 2,5 mm²
no. of straightening rolls 13
straightening roll diameter 50 mm
speed 0 - 60 m/min
power requirement 81,0 + kW
Fjdpfoy Rutyjx Aktegb
weight of straightening machine 14,5 t

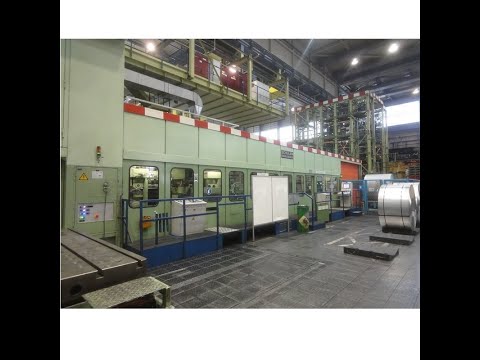

coil line consisting of:
- decoiler make Schleicher, Type HE - 355 - 2100, yom 1994
with auxiliary drive, snubber roll
- coil lifting device
- extractor device make Schleicher
- shear
- straightening machine make Schnutz, Type RME 18/50/13-2000 TZ, yom 1994
with infinitely variable drive, 30 intermediate rolls, 117 supporting rolls
- coil loop bridge
- roll feed make Schleicher, Type WV-SYS-A 160-2000, yom 1994
