รถเทขนาดเล็ก รถดั๊มรถตีนตะขาบขนาด 500 กก

SCHORR Minidumper RR500DHKA2 PRO 500kg Mulde

SCHORR track dumper RR500DHKA2 PRO:

- 9.2 HP four-stroke engine
- Self-propelled & powerful track drive
- 500kg payload
- Large & high-quality tipper body with large tipping angle
- Folding passenger platform as standard
- 6+2 gears
- Robust and scratch-resistant
- Top price-performance ratio
Bsdsttg Raepfx Aniewt

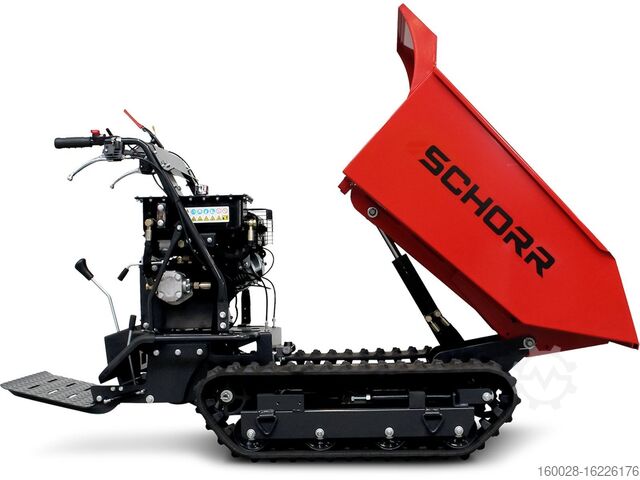

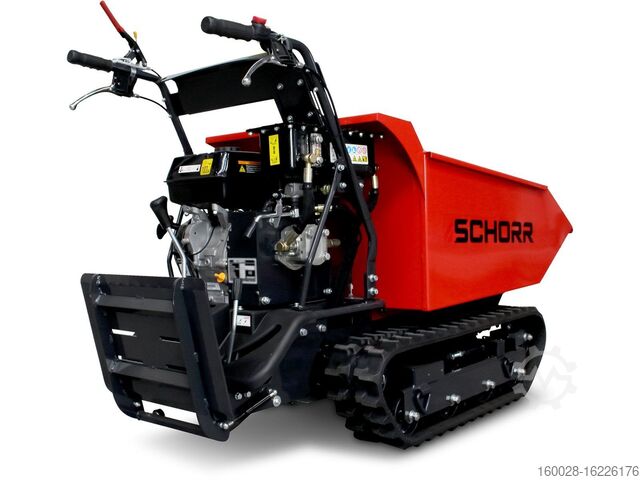

SCHORR TRACK DUMPER RR500DHKA2 PRO WITH TIPPING HYDRAULICS AND RIDER PLATFORM

The SCHORR RR500DHKA2 track dumper has a hydraulic tipping drive and a payload of 500 kg as well as a powerful 9.2 hp single-cylinder 4-stroke petrol engine. The robust transmission has 6 forward gears and 2 reverse gears. Thanks to its slim design (710 mm), the minidumper can also drive through narrow paths and doors, making it an extremely flexible means of transportation.

Thanks to the minidumper's powerful track drive, you can also overcome rough terrain, inclines and kerbs with ease. The rubber tracks provide a secure footing in any working area.

Lifting and lowering the tipper body / box is effortless and effortless thanks to the hydraulic tipper drive, even when fully loaded.

With a robust skip made of thick sheet metal and a straight outlet that ensures quick and easy discharge, this dumper is a must for anyone who needs to transport heavy loads. Even tipping on slight inclines is no problem.

The large tipping angle ensures that even fully loaded skips are emptied completely without you having to help manually. This saves time and effort and makes the motorized wheelbarrow an indispensable tool for anyone who values efficiency and performance. The smooth-running chain brakes ensure that the dumper is easy to maneuver.

TECHNICAL DATA:

Manufacturer (abbreviation): SCHORR
Type designation of the manufacturer: RR500
Model: DHKA2
Load capacity: 500kg
Tilt drive: Hydraulic (stepless)
Travel drive: Chain
Weight without/with packaging: 288 / 328kg

Drive

Engine: Air-cooled 1 cylinder four-stroke engine (OHV)
Starter: Reversing starter
Power: 9,2PS
Gearbox: 6 forward gears / 2 reverse gears

Maximum speed

Forward gear: max. 8km/h
Reverse gear: max. 5
Liquids
Fuel tank capacity: 6L (unleaded petrol)
Hydraulic oil tank capacity: 3L (ISO VG 32)
Transmission oil tank capacity: 1.5L (SAE 80W-90)
Engine oil tank capacity: 0.9L (15W-40)
Max. Hydraulic oil flow rate: 9L/min

Basic dimensions

Total length platform folded: 1800mm
Total length platform unfolded: 2000mm
Total width (incl. chain): 710mm
Overall height: 1050mm
Container dimensions (inside): 740 x 665 x 435mm
Container dimensions (outer dimensions): 1060 x 710 x 520mm
Track width: 710mm
Load volume (liquid): ~ 200L
Load volume (heaped): up to 370L (depending on load)
Drive chain dimensions: 180 x 60 x 38mm
Ground clearance: 120mm
Packaging size: 1890 x 740 x 1220mm

Filling height

Side: 810mm
Front: 580mm

A REAL ALL-ROUNDER
The RR500DHKA2 minidumper offers a flexible and mobile solution for transporting materials (e.g. bulk material) in construction projects, especially on uneven terrain. Thanks to its compact design and chain drive, the dumper is very maneuverable, making it particularly suitable for construction and gardening work. The built-in tipping hydraulics are very robust and make working with the device considerably easier compared to manually operated tipping systems.
