รถเทขนาดเล็ก รถดั๊มรถตีนตะขาบขนาด 500 กก

SCHORR Minidumper RR500DHKA2 PRO 500kg Mulde

Powerful mini dumper in top condition for sale!
The machine is in very good condition and ready for immediate use.

Condition: Used, very good
Operating hours: 22 hours
Year of manufacture: 2025

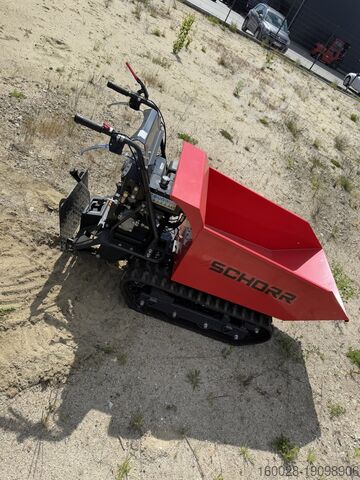

SCHORR tracked dumper RR500DHKA2 PRO:

- 9.2 HP four-stroke engine
- Self-propelled and powerful chain drive
- 500 kg payload
- Large and high-quality tipping trough with a large tipping angle
- Foldable rider platform as standard
- 6+2 gears
- Robust and scratch-resistant
- Top value for money

SCHORR tracked dumper RR500DHKA2 PRO with hydraulic tipping system and rider platform

The SCHORR tracked dumper RR500DHKA2 features a hydraulic tipping drive and a payload of 500 kg, as well as a powerful 9.2 HP single-cylinder 4-stroke gasoline engine. The robust transmission has 6 forward gears and 2 reverse gears. Thanks to its slim design (710 mm), the mini dumper can also navigate narrow paths and doorways, making it an extremely flexible means of transport.

The mini dumper's powerful track drive allows you to easily negotiate rough terrain, inclines, and curbs. The rubber tracks provide secure footing in any work area.

With a robust dumper made of heavy-duty sheet metal and a straight discharge that ensures quick and easy discharge, this dumper is a must-have for anyone who needs to transport heavy loads. Tipping on gentle inclines is also no problem.

The large tipping angle ensures that even fully loaded dumpers are completely emptied without the need for manual assistance. This saves time and effort and makes the motorized wheelbarrow an indispensable tool for anyone who values efficiency and performance. The smooth-running track brakes ensure the dumper's excellent maneuverability.

TECHNICAL DATA:

Manufacturer (abbreviation): SCHORR
Manufacturer's type designation: RR500
Model: DHKA2
Kdedpfx Aewh Nk Iog Dow
Load capacity: 500 kg
Tilt drive: Hydraulic (stepless)
Traction drive: Chain
Weight without/with packaging: 288 / 328 kg

Drive

Engine: Air-cooled single-cylinder four-stroke engine (OHV)
Starter: Recoil starter
Power: 9.2 hp
Transmission: 6 forward gears / 2 reverse gears

Speed

Forward gear: max. 8 km/h
Reverse gear: max. 5
Fluids
Fuel tank capacity: 6 L (unleaded gasoline)
Hydraulic oil tank capacity: 3 L (ISO VG 32)
Transmission oil tank capacity: 1.5 L (SAE 80W-90)
Engine oil tank capacity: 0.9 L (15W-40)
Max. hydraulic oil flow rate: 9L/min

Basic dimensions

Total length of platform folded: 1800mm
Total length of platform unfolded: 2000mm
Total width (including chain): 710mm
Total height: 1050mm
Tank dimensions (internal dimensions): 740 x 665 x 435mm
Tank dimensions (external dimensions): 1060 x 710 x 520mm
Track width: 710mm
Loading volume (liquid): ~ 200L
Loading volume (heaped): up to 370L (depending on load)
Drive chain dimensions: 180 x 60 x 38mm
Ground clearance: 120mm
Packaging dimensions: 1890 x 740 x 1220mm

Filling height

Side: 810mm
Front: 580mm

A TRUE ALL-ROUNDER
The RR500DHKA2 mini dumper offers a flexible and mobile solution for transporting materials (e.g., bulk materials) in construction projects, especially on uneven terrain. Thanks to its compact design and track drive, the dumper is highly maneuverable, making it particularly suitable for construction and gardening work.
