ศูนย์กลึง CNC - แนวนอน

Takisawa Taiwan EX308

USED Takisawa Taiwan model EX-308 3-Axis slant bed universal CNC lathe with Fanuc 21i-T control.

Serial number CF02E30091 Year 2005

Heavy Cast Iron Construction
High Performance 4 Track Linear Guideways

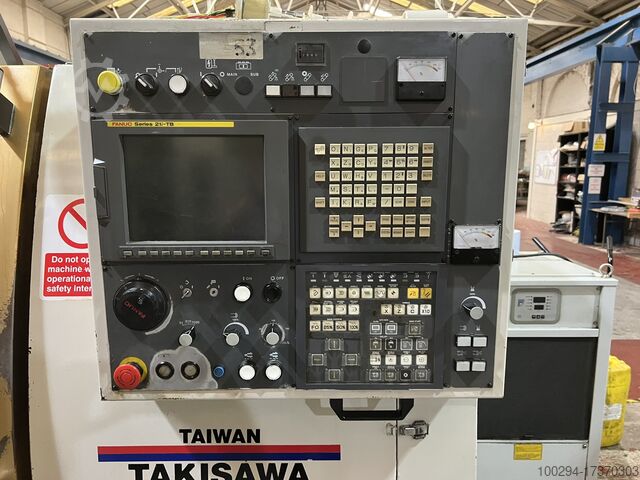

Fanuc 21iT CNC Control
12 Station Heavy Duty, High Speed Servo Turret with Driven Tools
Built in Oil Cooled Spindle Motor with Full C-Axis
Programmable Tailstock Quill
8” 3-Jaw Hollow Spindle Hydraulic Chuck
Tooling Package including two driven tool holders

Swing Over Bed - 450 MM
Distance Between Centres - 645 MM
Max. Turning Diameter - 260 MM
Max. Turning Length - 530 MM
Bar Capacity - 52 MM
X Axis Stroke - 180 MM
Z Axis Stroke - 530 MM
Spindle Speeds - 30 To 4000 RPM
Number Of Turret Stations - 12
Number Of Driven Stations - 12
Driven Tool Speeds - 40 To 4000 RPM
Driven Tool Motor - 1.1/3.7 KW
Tailstock Travel - 435 MM
Tailstock Quill Travel - 100 MM
Rapid Traverse Rates (X/Z) - 20/24 M/Min
Main Spindle Motor - 11/18 KW
Kjdpfx Ahouwdg Ue Dodw
Floor Space - 2360 X 1745 MM
Machine Weight - 4300 KGS
