TRUMPF Trubend 3066 ( B26)

Hydraulic press brake
Manufacturer: TRUMPF, Type: TruBend 3066 B26
Year of manufacture: 2017
Like new, only 4,500 operating hours!

Technical data

Manufacturer: TRUMPF
Type: TruBend 3066 (B26)
Year of manufacture: 2017
Bending length: 2040 mm
Press force: 66 t
Operating hours: 4,500 h (metered)
Free clearance between uprights: 2364 mm
Reach: 400 mm
Stroke: 200 mm
Y-axis rapid traverse speed: max. 200 mm/s
Y-axis working speed: max. 15 mm/s
Drive power: 17 kW
Dimensions: L 2.60 x W 1.65 x H 2.40 m
Weight: 5650 kg

Equipment

- Electro-hydraulic upper drive
- Block hydraulics
- Controlled axes: Y1, Y2, X, R
- 3 backstops
- TRUMPF upper and lower tool clamping system
- Self-adjusting crowning system
- Control: Delem T3500T Multi-Touchscreen 17"
- Light curtain front BendGuard
- Integrated TRUMPF technology data
- Foot switch
- Technical documentation
- Tool package consists of:
- Upper tool Trumpf OW201K, slightly bent, 86°, L = 1,250 mm, segmented
- Bent upper tool, H 120 mm, R1/86°, L = 1,950 mm, segmented
- Lower tool EV042, V10, L = 1,250 mm, segmented
- Lower tool V24, 80°, L = 2,000 mm
- plus various short tools

Kdjdpfjy Txdbox Ahljl
All information without guarantee.

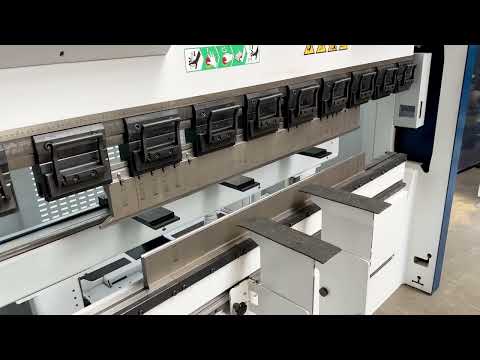

A demonstration under power is possible at any time in our showroom.
