เครื่องมิลลิ่ง - แนวตั้ง

WMW - RUHLA VRB 2242

Technical details:

x-travel: 400 mm
y-travel: 420 mm
z-travel: 380 mm
table surface area: 710 x 400 mm
max. table load: 120 kg

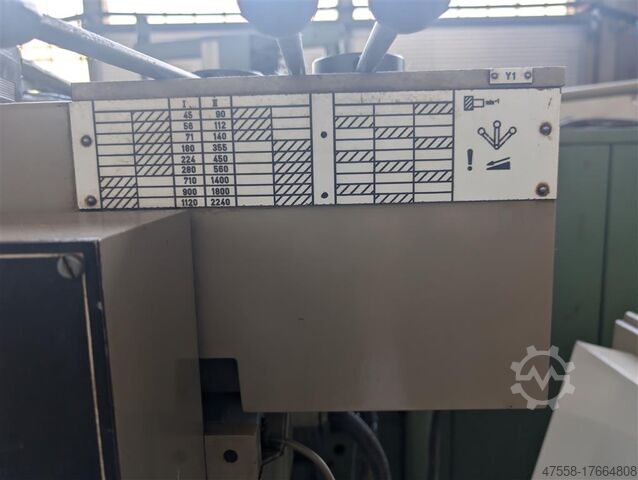

range of revolution per miute: 45 - 2240 / 18 step U/min
feed continuous: 6,3 - 600 / 2 steples mm/min
quill stroke vertical: 100 mm
quill stroke: horizontal: 100 mm
spindle taper: vertical/horizontal: SK 40/SK40
spindle head swivable left - right: 90 °
distance table/horizontal spindle: min./max.: 200 / 325 mm
distance table/vertical head: min./max.: 150 / 730 mm
total power requirement: 5,5 kW
weight of the machine ca.: 1,95 kg
Bcjdpfxsu Nc Hko Ah Sew
machine dimensions LxWxH: 1,7 x 1,4 x 1,9 m
dimensions electric cabinet: 850x500x1500 mm

The milling machine is equipped with a 3-measuring path display.
incl. machine feet and operating instructions


*
