เครื่องเจาะขาตั้งคู่

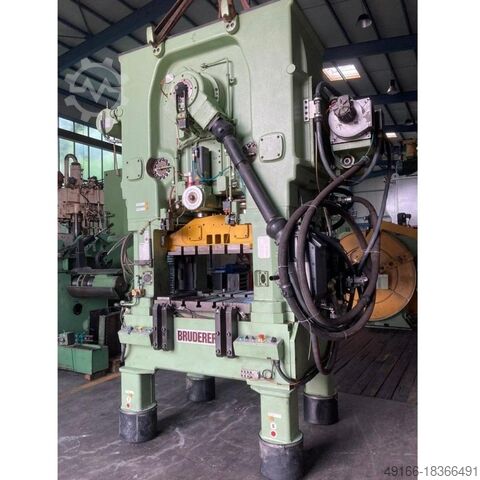

BRUDERER BSTA 80 B (CE)

pressure 80 t
Ksdpfx Ajvuua Noh Dodw
stroke 16 - 63 mm
no. of strokes 100 - 750 /min
distance between columns 970 mm
dayligth (stroke and adjustment up) 380 mm
column travel -side 380 mm
table surface area 940 x 910 mm
hole in the table 770 x 190 mm
table height over floor 1180 mm
ram surface 940 x 510 mm
ram adjustment 76 mm
material width 203 mm
material thickness - 6,0 mm
feed length 0 - 120 mm
power requirement 37,0 kW
Weight 14,50 t
dimensions of the machine ca. 2,7 x 1,7 x 3,6 m
permitted for automatic mode according to the CE-Norm
with infinitely variable drive, pneumatic clutch/brake combination, semi-automatic stroke adjustment, motoric ram adjustment, fix table, circular oil lubrication
mechanical roll feed Bruderer BBV 205/120
with drive via main shaft / pivot shaft of the press
consoles Guethle CK

A noise enclosure can be offered optionally - price on request
